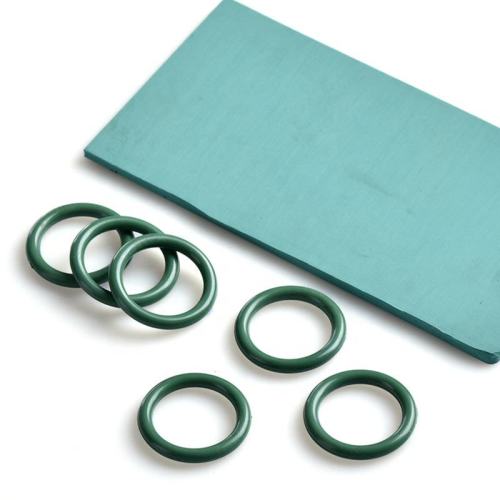

Flurine® Low-Temperature Fluoroelastomer
- Model
- PL-312201, PL-32251
Item specifics
- Features
- Low-temperature sealing, High flexibility
- Uses
- Compression molding and transfer molding
- Forms
- Translucent to light yellow
Review
Description
Description
Flurine® Low-Temperature Terpolymer Fluoroelastomer , composed of VDF/TFE/PMVE, and peroxide-cured. It significantly lowers the TR10 temperature, maintaining effective sealing at -30℃, making it an adeal choice for low-temperature sealing applications.
It offers excellent low-temperature flexibility effectively overcomes the hardening and embrittlement issues of conventional FKM at low temperatures, maintaining elasticity and sealing integrity, good chemical resistance preserving the outstanding oil and solvent resistance characteristic of the fluoroelastomer family, and is suitable for demanding environments designed for complex operating conditions requiring both high and low-temperature performance.
Technical Specifications
|
General
|
|||||||
|
Features
|
Excellent cold temperature flexibility, acid resistance and mechanical properties. |
||||||
|
Uses
|
Compression molding and transfer molding |
||||||
|
Forms
|
Translucent to light yellow |
||||||
Items | Typical Value | Test Method | |||||
PL-312201 | PL-32251 | ||||||
Physical Properties | |||||||
Fluorine Content | 64.5 | 66.5 | ASTM D297, ML 1+10 at 121°C | ||||
Mooney Viscosity | 20~50 | 25~55 | ASTM D1646, 23°C | ||||
Specific Gravity | 1.80 | 1.85 | ASTM D297 | ||||
Solubility | Soluble in lower Ketones and esters. | ||||||
Note: For Technical Data Sheet, please contact us for more information.
